Thinkcar Thinkscan Max OBD2 Scanner Automotivo Car Diagnostic Tool Ecu Code Reader with Free 28 Reset Function

2021 Elite Version, Global NO IP Limits, You can diagnose your car at any time,any location.

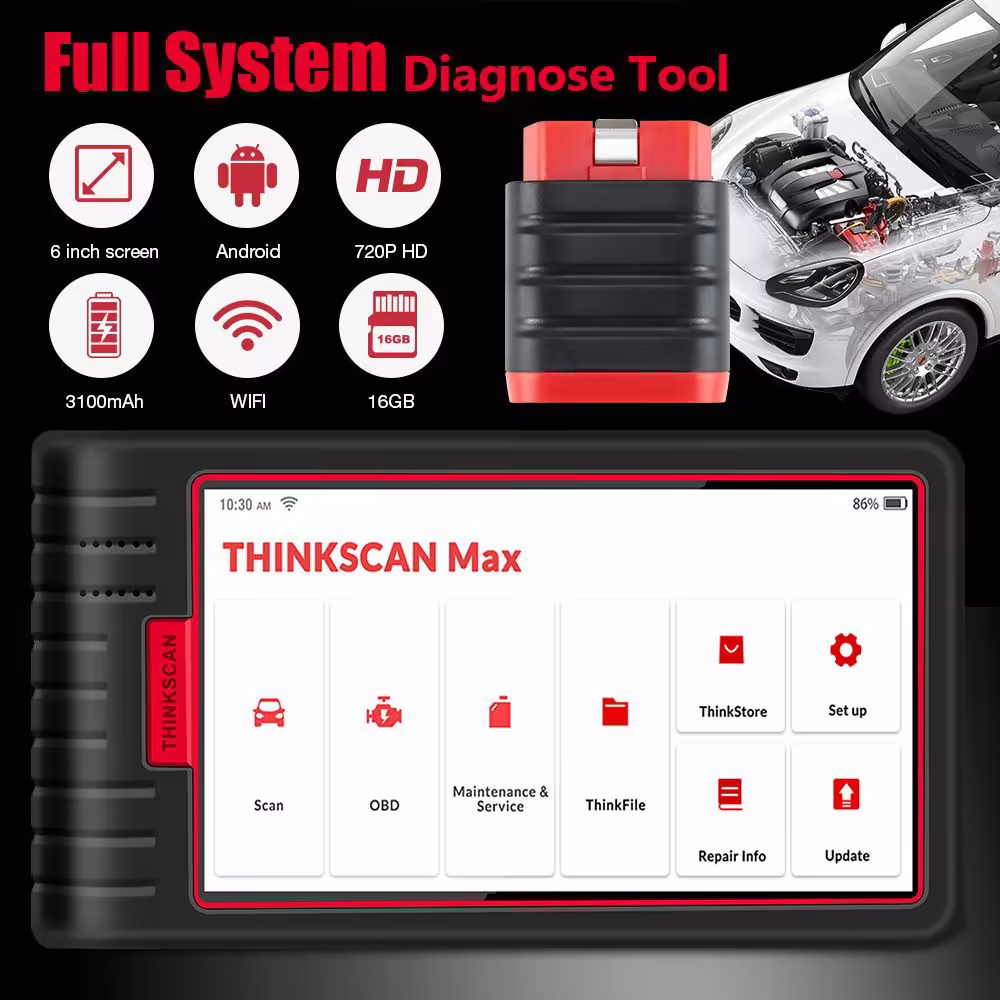

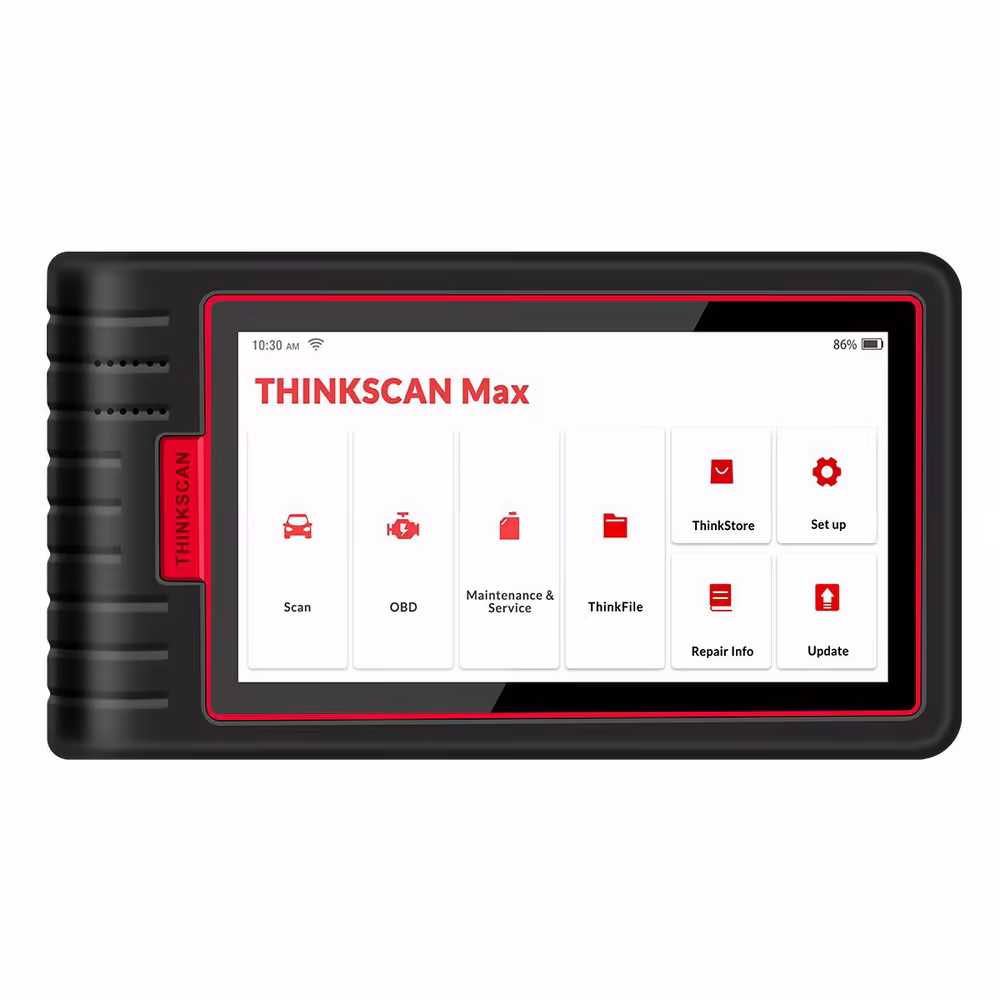

THINKSCAN MAX Tablet Homepage Function List(Basic functions Menu)

1. SCAN : intelligent diagnosis Function For car, Automatic identification of vin, enter the diagnosis system,do the full system diagnose.
2. OBD: full OBD2 functions menu, such as OBD 10 standard models.
3. Maintenance service : 28 maintenance service download, enter the reset function.
4. THINK FILE: save the data records of the detected vehicles, such as: report,diagnose history,photos.ect
5. THINKCAR Store : subscription software, software upgrade, realize full-function diagnosis
6.REPAIR INFO: operation steps and details for some functions.
7. SETTINGS: change language/WIFI Connection/adjust screen light...
8. UPGRADE: The software version can be updated,choose to file to update newest version

Highlight Functions Of THINKSCAN MAX

1.Full System Diagnostic for 124 Car Brands:

Thinkscan max scan tool will be able to perform full system diagnosis on 124 car brands, offering more choice and chance no matter what kinds of vehicles you encounter.
support the OBD protocol after 1996， OBD2 Car newer 2021 year.

pls click here to check your car list :

https://mythinkcar.com/coverage/checklist

Full systems including

Chassic System
Division Security System
Brake Assist System
Air Conditioning System
engine/ABS/SRS/Seat/
and more....

2.Intelligent Professional Functions Supports :(Need buy from Think Store Menu)

Bi-direction control & ECU Coding & Setting basic parameters& Reset ECU to initialization module and more....

（these functions details will explain later,pls have a look at more.）

Pay for one Car brand software ,such as VW, only 49.95usd/year.
You will enjoy these 4 professional Functions of car.
Besides, Not all Car ECU module could be support,pls kindly know it.

3.28Maintenance Reset Functions:ALL LIFETIME FREE

Commonly-used RESET SERVICES function includes: oil reset, Sunroof reset,EPB service, ABS bleeding, Injector Coding,Suspension reset, Gearbox reset,AFS Headlamp Reset,Throttle Adaptation,Gear Learning, EGR Reset, BMS, SAS,DPF, IMMO, Basic TPMS Reset service etc.

4.ThinkCar ThinkScan Max Language :

English , Russain ,German , Spanish , French , Italian , Japanese , Portuguese

5.ThinkCar ThinkScan Max Update & Warranty :

Update : All functions and all softwares Free Update Lifetime
Warranty :We provide 5 Years warranty

(only The intelligent functions of thinkscan max 1 Year free )

6.THINKACAN MAX Supports FULL OBDII Functions

Through the simple Bluetooth communication between diagnostic dongle and the hostcomputer, it achieves full car model and full system vehicle trouble diagnosis,whichinclude Reading DTCs, Clearing DTCs,Reading Data Stream

7.Wireless Connection, Bluetooth Diagnosis:

Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work.

Bi-direction control

It can actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls. More optional advanced functions are available .

Test whether the actuator is normal: turn on the radiator fan, adjust the throttle, open/close windows, operate the rearview mirror, turn on/off the lights, turn on/off the horn, etc.

ECU Coding:

Carry out the customer's personalized customization of the car, such as setting alarms, door locks and outdoor lighting, etc. to improve car performance or upgrade to high-end car functions (for BMW, Mercedes-Benz, Audi, etc.)

Smart Diagnosis：Auto VIN Scan identify

1.Read Version Information : read the current version information of the car ECU
2 Read Fault Code: Help you quickly identify the cause of the vehicle breakdown
3 Clear Fault Code: serves to clear the DTC of the ECU memory of the tested system.
4 Read Data Stream:Help you read and display real-time data and parameters of the car ECU ,learn the vehicle’s performance and offer maintenance suggestions
5.Keep Diagnosis History: Keep all previous records on the screen no need to start anew

ThinkScan Max supports Full systems

engines/Auto Transmission/Airbags/IMMObilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics

1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset: Turns off Check engine Light (MIL), clears codes and resets monitors.

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Thinkscan Max Supported 28 Kinds of Reset Service

The Thinkscan max supports 28 commonly used special reset functions, allowing you to quickly access the vehicle system for various scheduled services, maintenance and reset performance, eliminating the need to reset the car after solving common problems Troubles.Listed some commonly used special reset services for your reference:

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change
This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.Cluster Reset
a) Cluster reset is to use the car diagnostic computer and data cable to restore the kilometer value in the odometer chip to make the odometer display the actual mileage.
b) Usually when the mileage is incorrect due to damage to the vehicle speed sensor or malfunction of the odometer,
Cluster reset is required after maintenance.

25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Note:
These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.

Please Leave us message in below format, we will reply you within 8 hours. For example : xx, 2005, 2.0cc, Diesel

ThinkCar ThinkScan Max Supports about 124 Car software list :

Q&A

Q: Why does it have no responses when connected to a car computer?
A: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car.

Q: Why does the system stop while reading the data stream?
A: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly.

Q:Communication error with vehicle ECU?
A: Please confirm:
1.Whether diagnostic dongle is correctly connected.
2.Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to us using
Feedback feature.
Q: Why does the host screen flash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.

Q: How to upgrade the system software?
A: 1. Start the tool and ensure a stable Internet connection.
2.Go to "Set up" -> "App Update", click "OTA" and then click "check version" to enter the system upgrade interface.
3. Complete the process by following the instructions on the screen step by step. It
may take a few minutes depending on the internet speed. please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface.

Q: Please explain the account and points.
A: To use THINKSCAN Max, you need to register an account. Each account has the opportunity to earn points by recommending others to buy products and participating in official events. 1 point can be deducted for 1 dollar when purchasing products or services

Q: How to capture the screenshot?
A: A"Screenshot" icon is always floating on the screen. Tap it to capture the current screen and the screenshot is saved in the Think File module.
