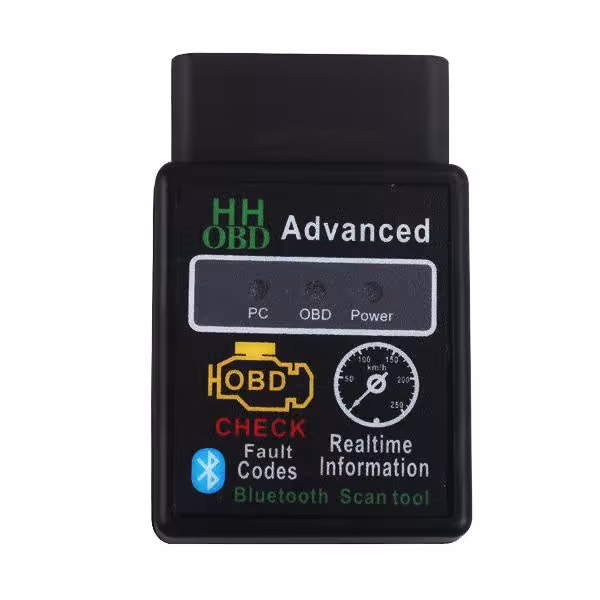

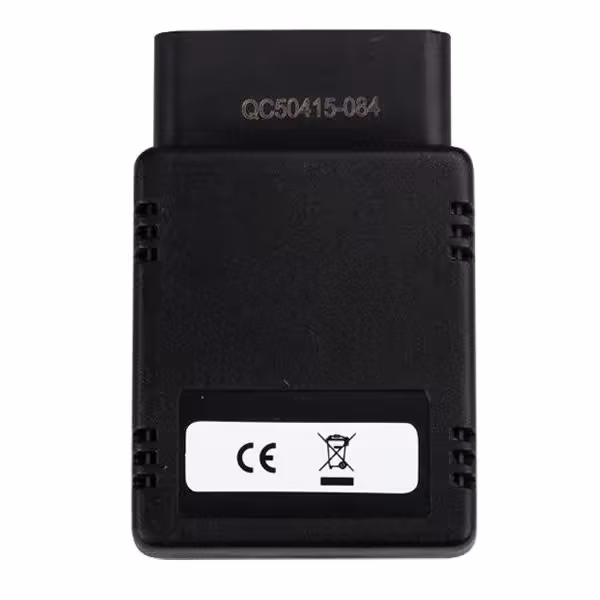

V2.1 Mini Bluetooth ELM327 OBD HH OBDII Protocolos OBD2 Car Diagnostic Scanner

My Shopping Cart

V2.1 Mini Bluetooth ELM327 OBD HH OBDII Car Diagnostic Scanner 3231Chip Works on Android/Symbian/Windows

1.Connect with computer by Bluetooth, works on Android, Symbian and Windows
2.Latest firmware version: V2.1
3.Model design with great performance
4.Support OBDII Protocols
Item No. COBD23214
5 stars, 0 reviews.
In Stock
Price:
US$16.99/ piece
Discount Price:
US$7.99/ piece 53%
Quantity:

Shipping:
Free ShippingStandard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
V2.1 Mini Bluetooth ELM327 OBD HH OBDII Car Diagnostic Scanner 3231Chip Works on Android/Symbian/Windows
  • V2.1 Mini Bluetooth ELM327 OBD HH OBDII Car Diagnostic Scanner 3231Chip Works on Android/Symbian/Windows
  • V2.1 Mini Bluetooth ELM327 OBD HH OBDII Car Diagnostic Scanner 3231Chip Works on Android/Symbian/Windows
  • V2.1 Mini Bluetooth ELM327 OBD HH OBDII Car Diagnostic Scanner 3231Chip Works on Android/Symbian/Windows
V2.1 Mini Bluetooth ELM327 OBD HH OBDII Protocolos OBD2 Car Diagnostic Scanner

Top 5 Reasons to Get V2.1 Mini Bluetooth ELM327 OBD HH:
  1. This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.
  2. OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
  3. The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
  4. To uninstall the program, simply delete the entire contents of the folder where the program resides.
  5. The software supports four platforms - For DOS/Windows/Android. This product is a non-oem, generic product.

Notice: This device can't work with IOS system.

Mini Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols:
  • Works with all OBD-II compliant vehicles
  • Wireless (Bluetooth)
  • Software included for Palm, PDA
  • Software included for Windows PC
  • Software included for Windows Smartphone
  • Supports ISO 9141, KWP2000
  • Supports SAE J1850
  • • Supports CAN bus

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:
  • Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
  • SAE J1850 PWM (41.6 kbaud)
  • SAE J1850 VPW (10.4 kbaud)
  • ISO 9141-2 (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (fast init, 10.4 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 250 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 250 kbaud)
  • Device type: Car bluetooth read interface scanner
  • Interface type: Auto ELM327 V1.5 interface

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:
  1. Scantool.net
  2. GM Mode 22 Scan Tool by Terry
  3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
  4. OBD Logger by Jonathan Senkerik
  5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
  6. OBD2crazy.com
  7. OBD2 Scantool by Ivan Andrewjeski
  8. OBDII for ELM322 by David Huffman
  9. pyOBD by Donour Sizemore for MacOSX and Linux
  10. RDDTC by Pete Calinski
  11. Real Scan by Brent Harris
  12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
  13. OBD by WDT

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:
  • Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
  • Clear trouble codes and turn off the MIL ("Check Engine" light)
  • Display current sensor data, including:
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages/associated short term fuel trims
  • Fuel System status
  • Fuel Pressure
Many others

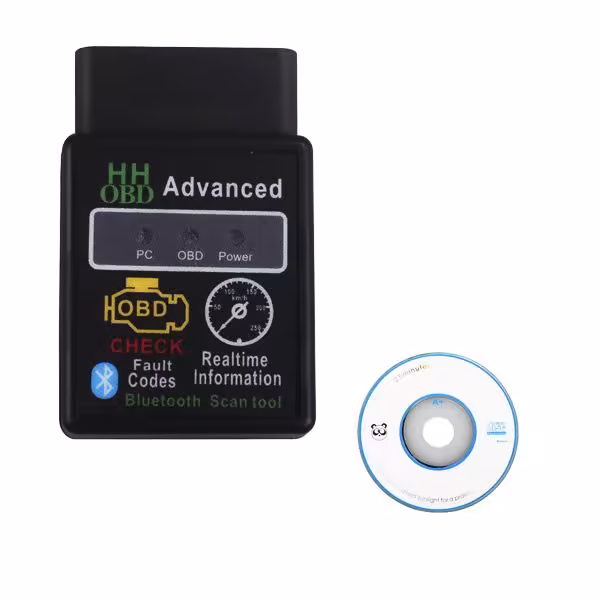

Package List:
  • 1pc x ELM 327 OBD HH Mini Bluetooth V2.1
  • 1pc x CD Driver
