LAUNCH EM101N EV Oscilloscope & Multimeter

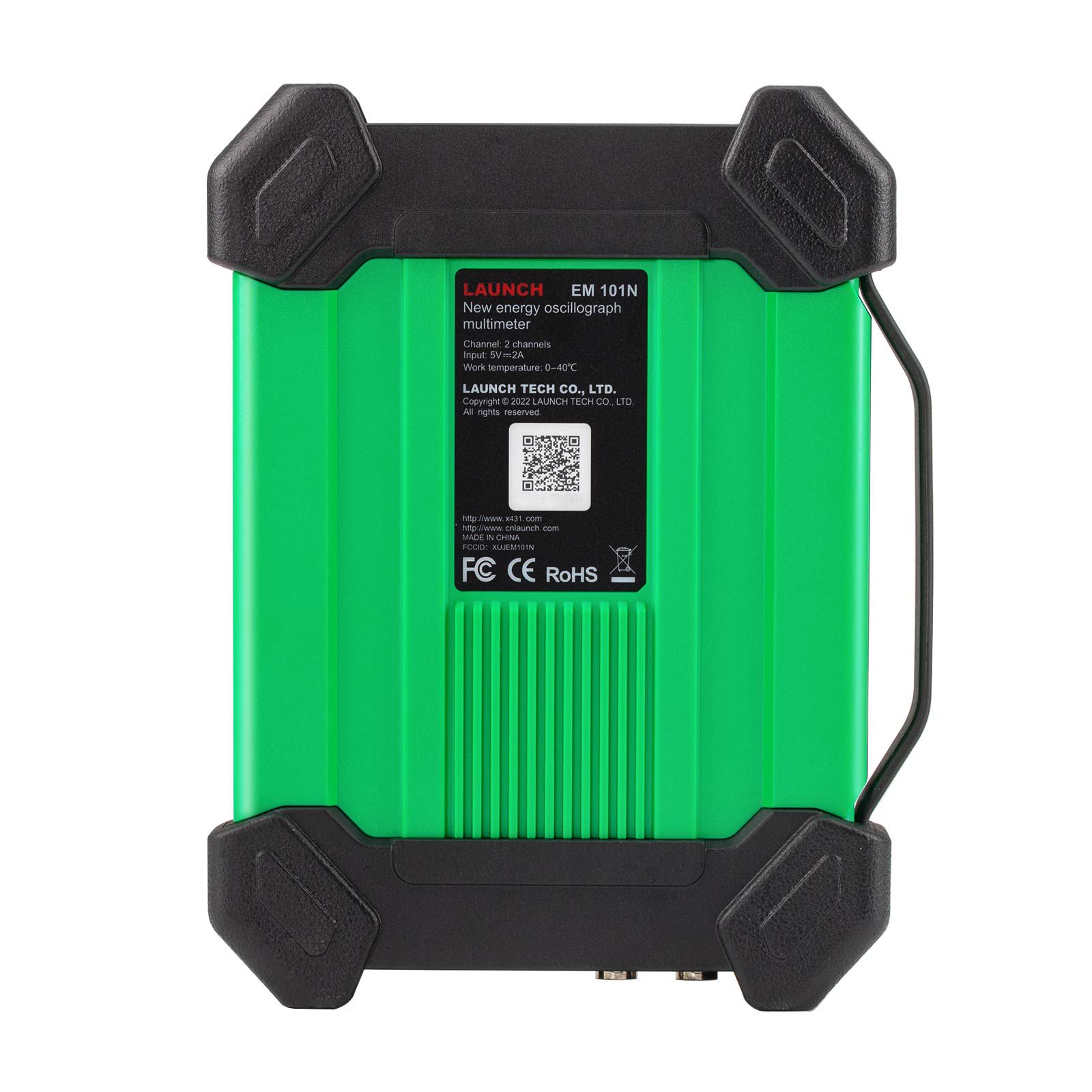

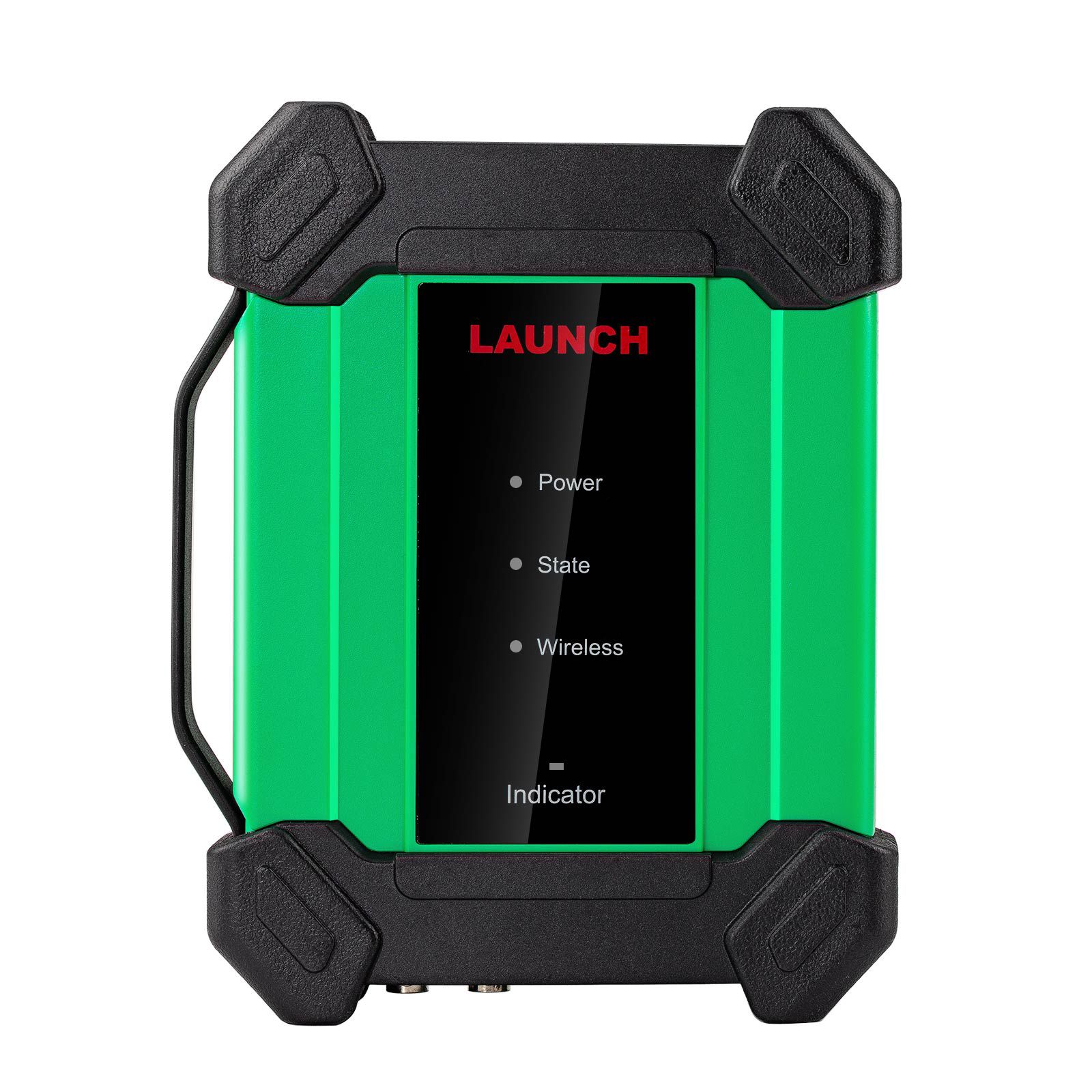

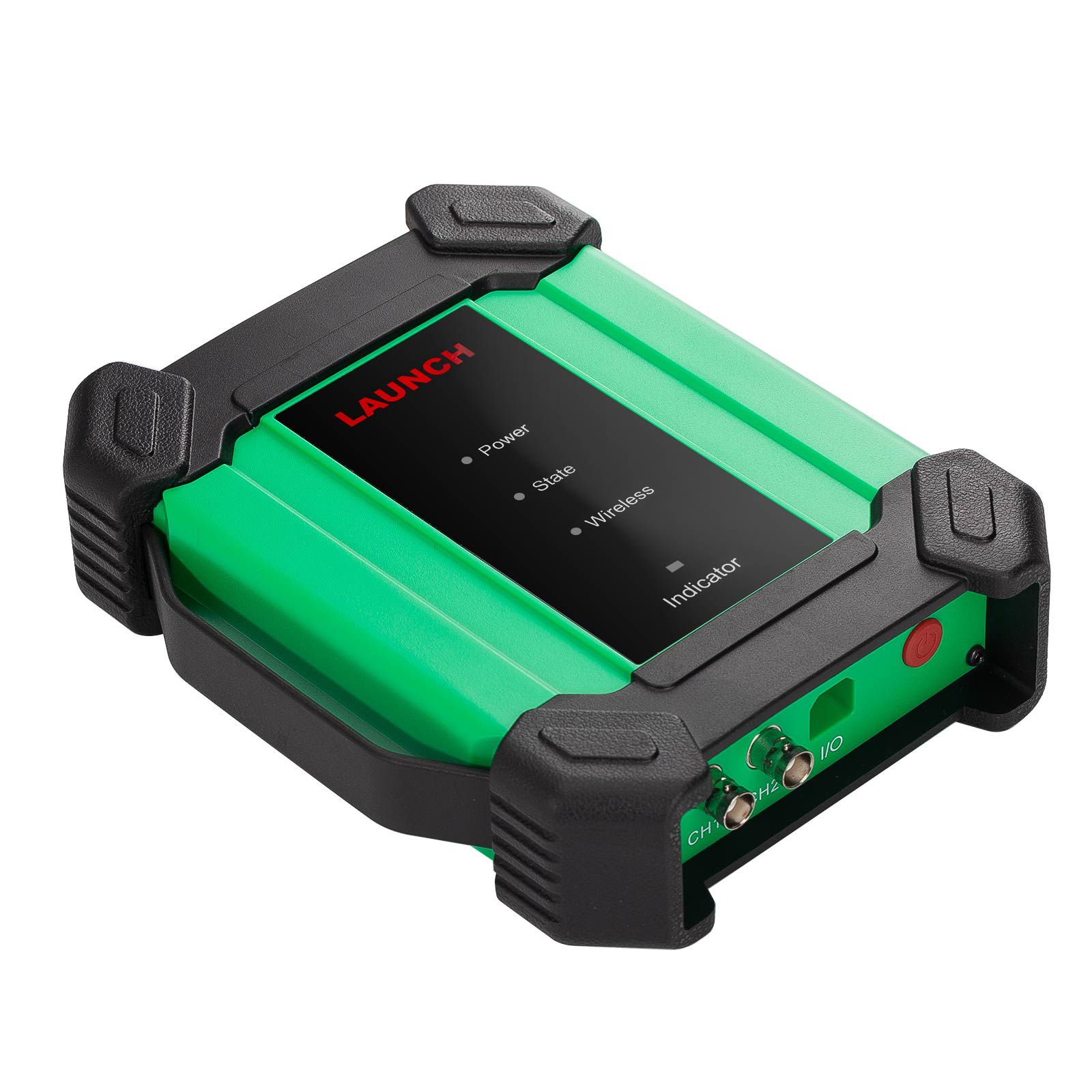

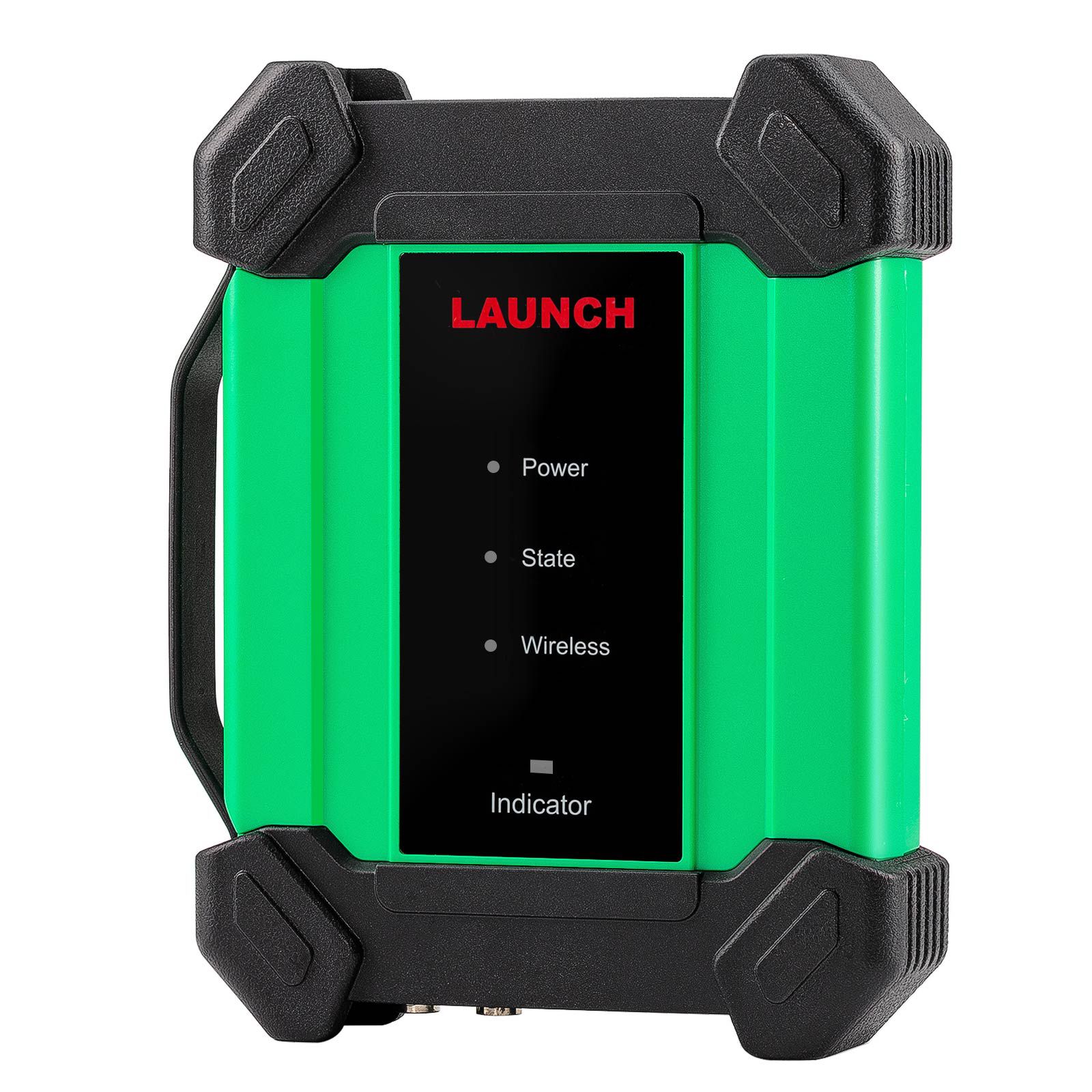

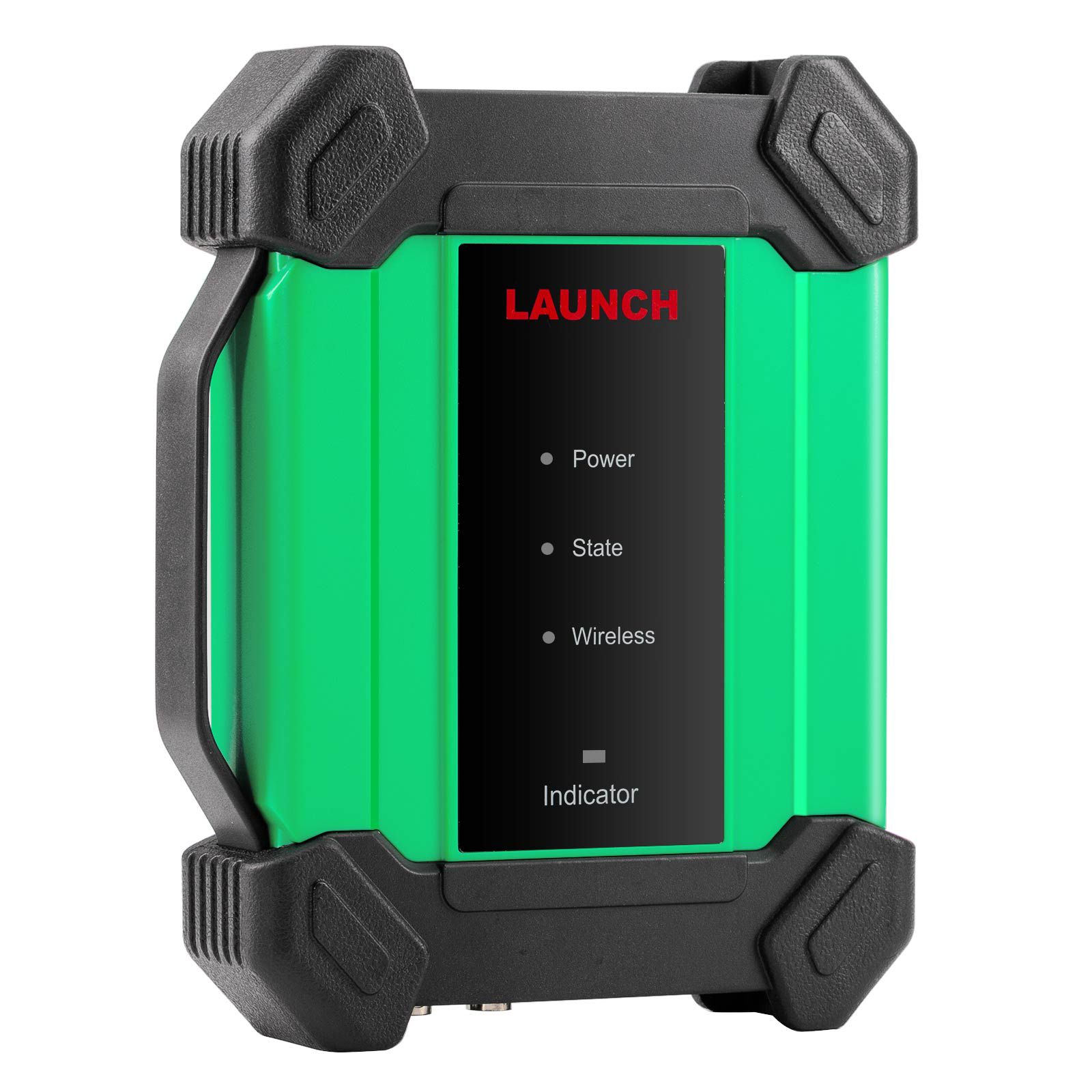

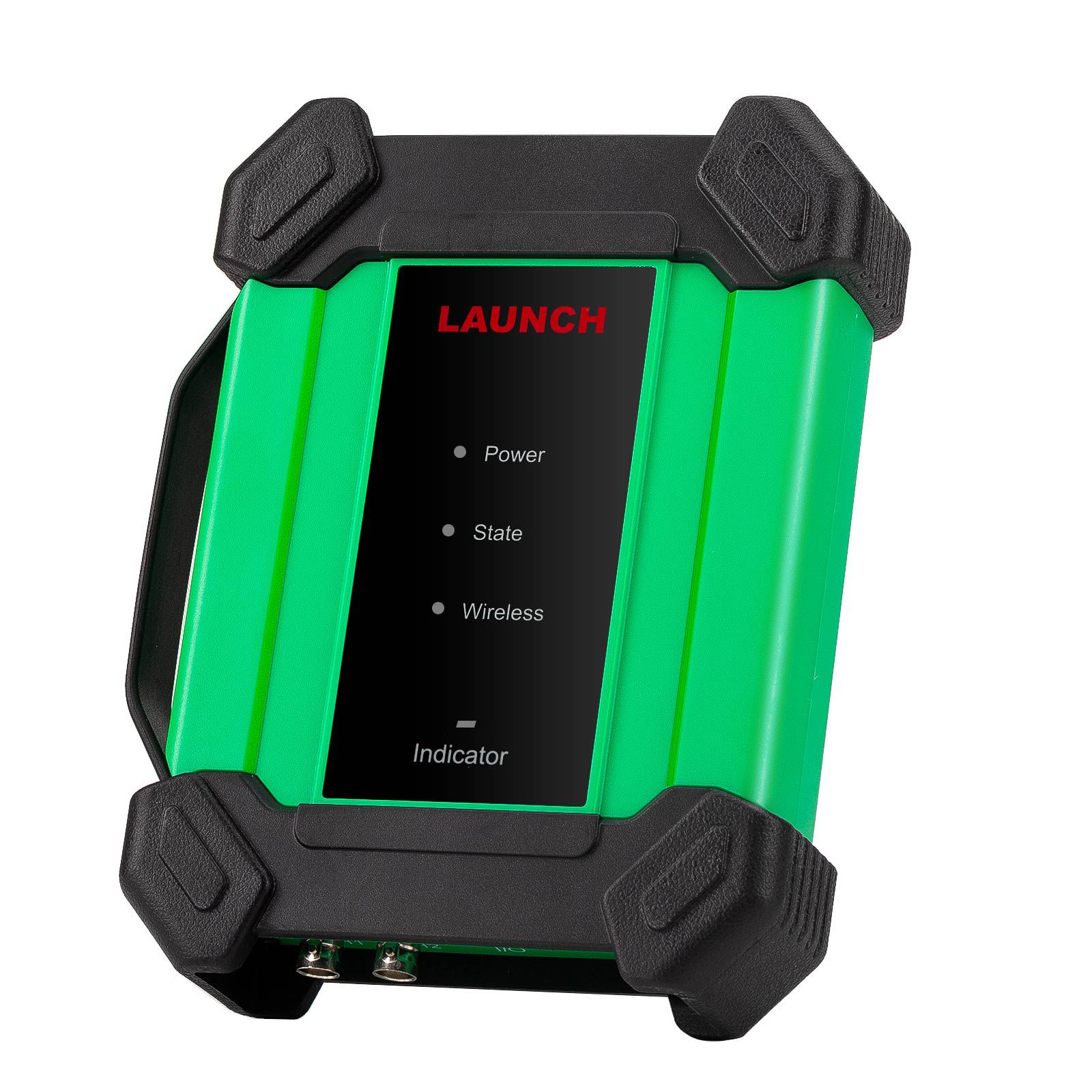

This EM101N is composed of hardware and software. Hardware includes EM101N module and connection wire. The Oscilloscope and Multimeter APP are installed on diagnostic tool.
Automotive oscilloscopes assist the auto repair technician with the ability to quickly identify faults on automotive electronic equipment and wiring. The oscilloscope sweep speed is far greater than the signal frequency of such vehicles, usually 5-10 times of the measured signal and quickly acquire the circuit signal while slowly displaying the waveform for observation and analysis.
The built-in multimeter provides simple measurements to test voltage, current and resistance to help determine faults.

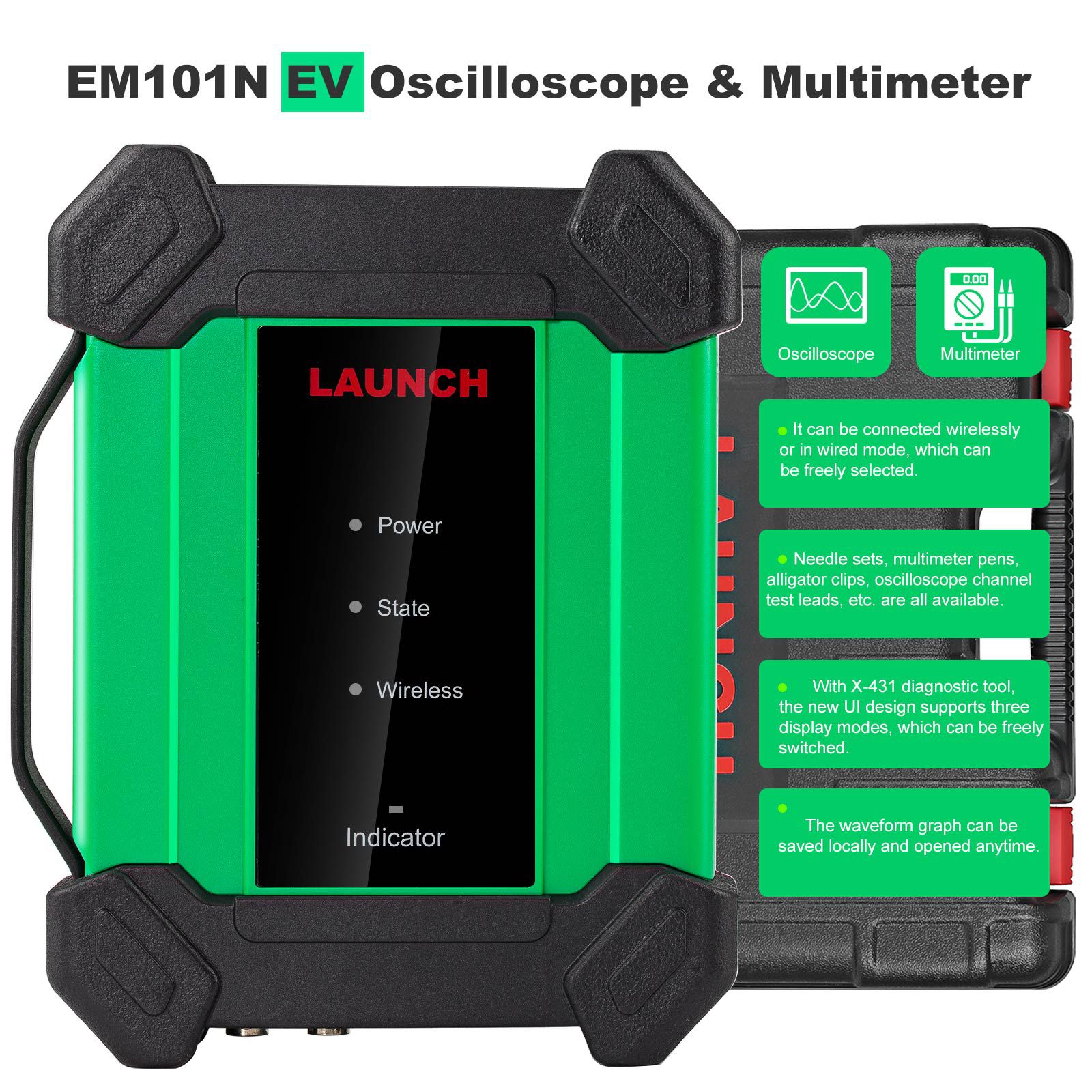

1. Combined with the characteristics of dual-channel oscilloscope and multimeter.

2. The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.

3. With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.

4. With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.

5. Needle sets, multimeter pens, alligator clips, oscilloscope channel test leads, etc. are all available.

Product Specifications:

DC Voltage: Automatic range, test range: ±600V

AC Voltage: Automatic range, test range: ±600V

DC Current: Automatic range, test range: ±10A

(It is necessary to connect an external sensor for large range current.)

AC Current: Automatic range, test range: ±10A. Average value measurement

(It is necessary to connect an external sensor for large range current.)

Resistance: Automatic range, test range: 0~6MΩ

On and off: Tweet when less than 30Ω

Diode: 0.5V—2.0V

Battery Capacity: 3100mAh

Bandwidth: 10MHz

Channel: Two analog channels

Real-time Sampling Rate (Max): 50MHz/s

Time Base Range: 1us/div～10s/div, step by 1～2～5 times

Sampling Mode: Normal sampling, peak detection, average

Buffer Memory: 1M

Input Coupling: DC, AC, grounded

Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF

Vertical Sensitivity: 2mV/div～5V/div

Vertical Resolution: 8bits

Maximum Input Voltage: 40V peak value（DC + AC peak value）

Probe Attenuation Factor: 1X, 10X, 100X（probe support required)

Trigger Type: Edge trigger, pulse width trigger

Trigger Mode: Auto, Normal, Single

Automatic Measurement: Peak-to-peak value, Average value, Maximum value, Minimum value, Top value, Bottom value, Frequency, Period

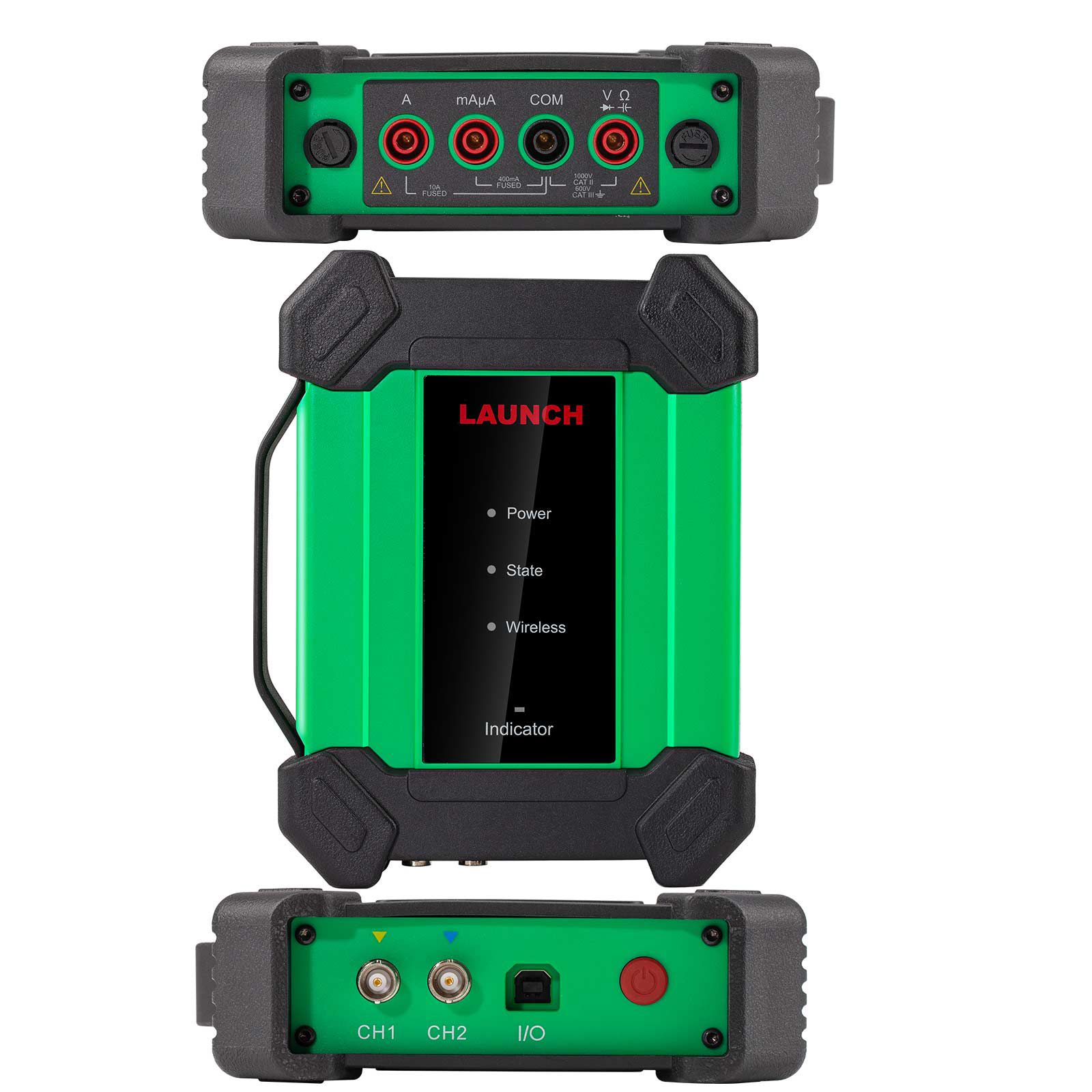

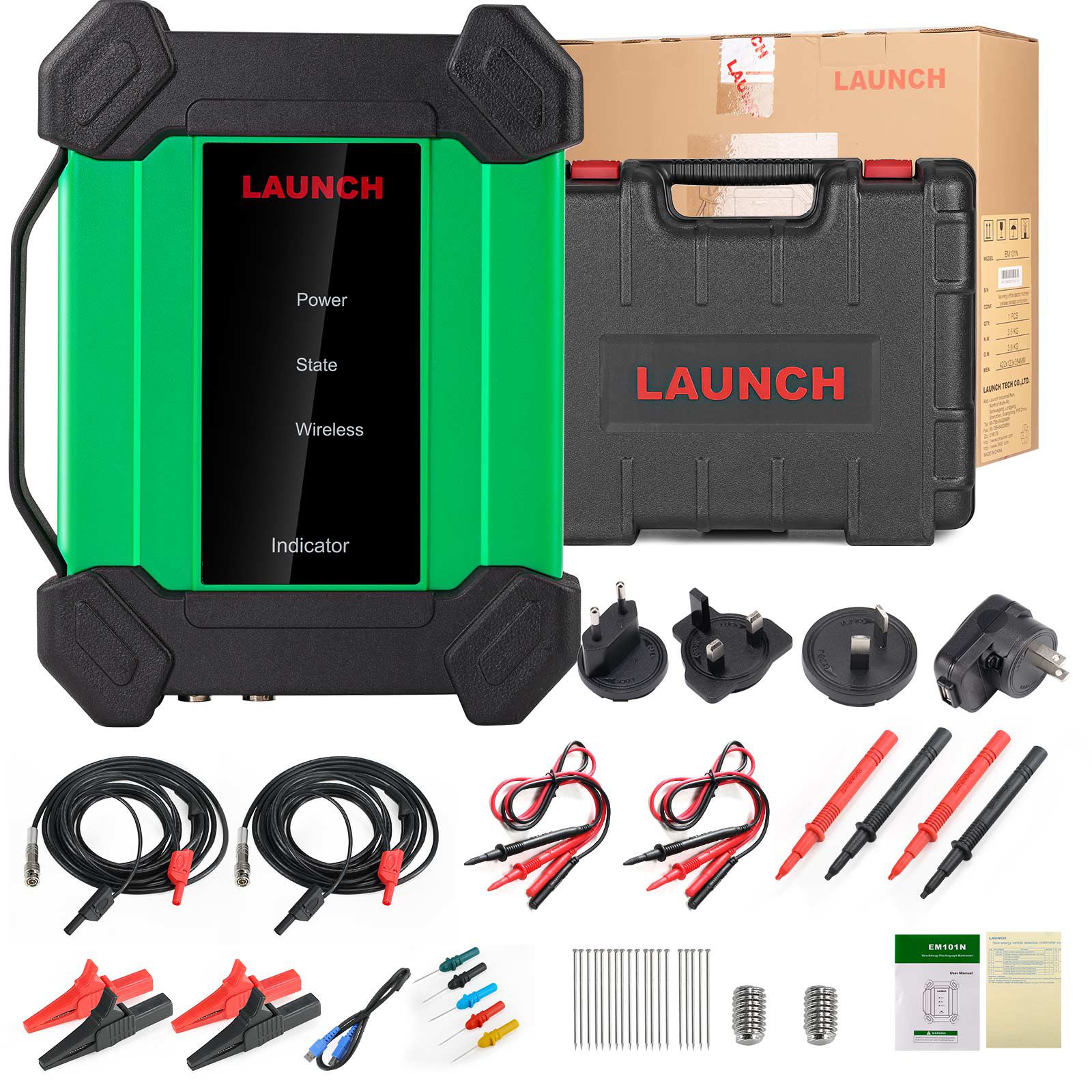

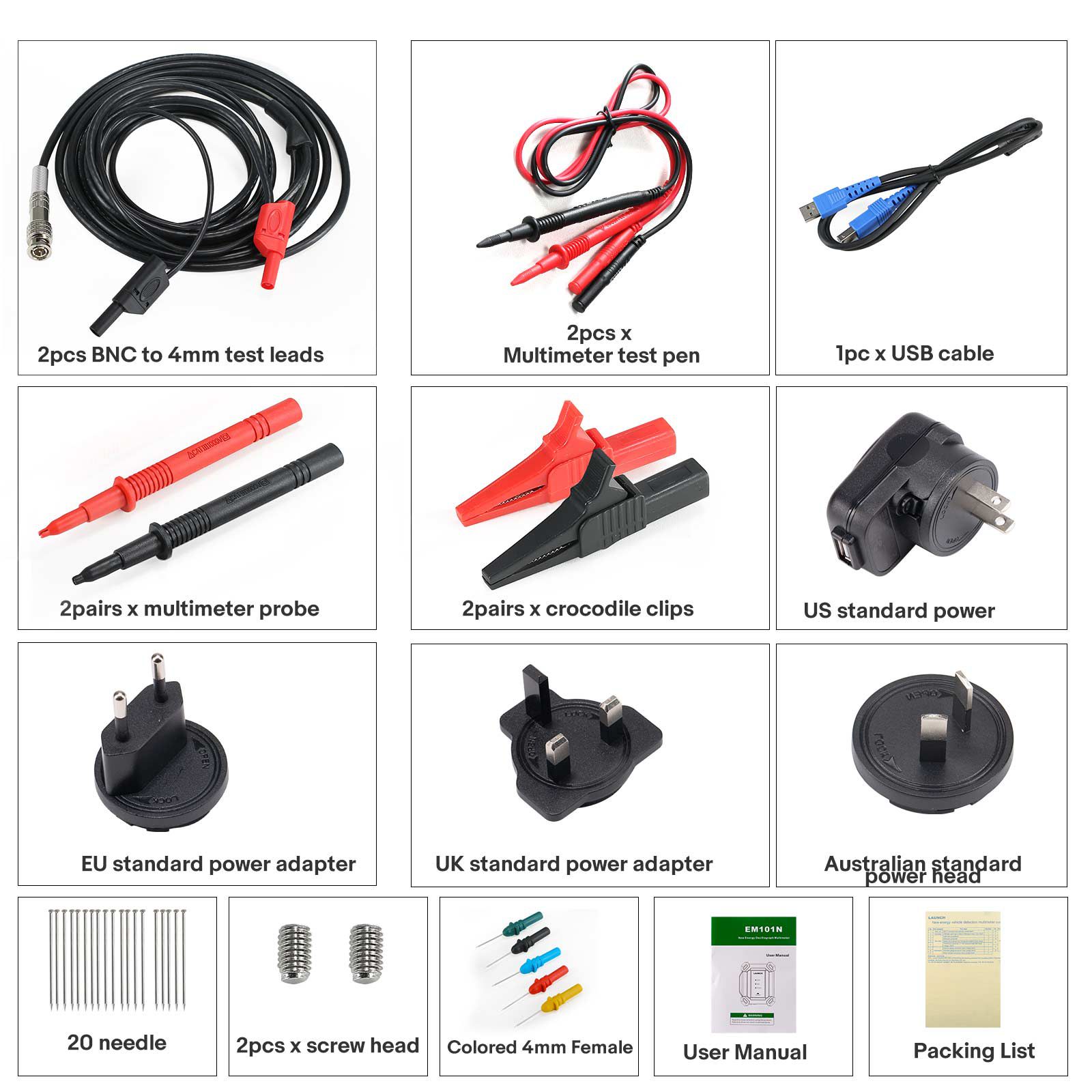

Package includes:
