Top Quality VAS 5054A Bluetooth Diagnostic Tool with OKI Chip – Multi-language Support

Top 6 Reasons to Get the VAS5054A

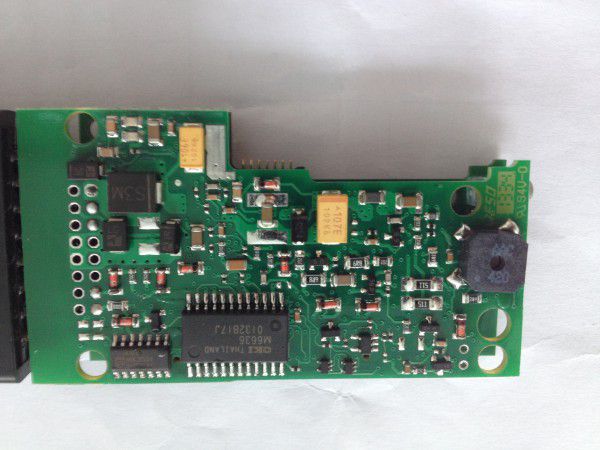

1. Equipped with OKI Chip
2. Supports UDS Protocol
3. Multi-language Support: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese
4. Supported Car Models: Volkswagen, Audi, Škoda, SEAT, Bentley, and Lamborghini
5. Bluetooth Version (Bluetooth Connection Password: 082145725)
6. Software Updates via CD

Important Notes

• VAS 5054A hardware supports online coding, but our provided software does not. You must obtain compatible software from a Volkswagen dealer to enable online coding functionality.
• If you require software for Lamborghini or Bentley vehicles, please specify this in your order notes.

ODIS V5.1.6 Release Notes

• Includes software bug fixes
• Addresses undocumented VCI exchange in diagnostic protocol
• Resolves internal defects

VAS 5054A ODIS V5.1.6 System Requirements

• Windows System Language: American English
• Operating System: Windows 7 Professional
• Drive Format: System drive C:\ must be formatted as NTFS
• Available Space: At least 40 GB free space on drive C:\ for installation

VAS 5054A Description

The VAS 5054A is a universal diagnostic interface designed for vehicles of the Volkswagen Group and all OBD-compliant vehicle systems from other manufacturers.

Its integrated Bluetooth interface enables wireless communication between the vehicle and a notebook, desktop PC, or test system—eliminating the need for physical cables during diagnostics.

The effective wireless Bluetooth range is 2 to 5 meters, depending on environmental conditions and the type of Bluetooth adapter used on the PC side.

Data transfer occurs via the Serial Port Profile (SPP), with support for multiple Bluetooth security levels.

VAS 5054A Technical Specifications

Vehicle communication protocols are processed directly within the VAS 5054A unit, ensuring fast response times and reliable real-time performance independent of the host PC’s operating system.

Upon each connection, the VAS 5054A identifies itself using the software version installed on the application PC, automatically enabling any new features introduced by updated software.

The diagnostic application and its associated Diagnostic Base System are installed on the user’s PC and can communicate with the VAS 5054A via either Bluetooth or USB.

Access via Bluetooth

Once connected, the Bluetooth stack creates a virtual serial COM port (using the Serial Port Profile). The Diagnostic Base System uses this COM port to interact with the VAS 5054A. This port must be specified during diagnostic application setup.

Access via USB

The VAS 5054A can also be connected directly to the PC using the included USB cable. Windows automatically detects the device via Plug and Play and installs the necessary drivers that were copied during the diagnostic software installation. After this, the VAS 5054A is ready for immediate use.

VAS 5054A Supported Vehicle List

Supported Audi Models

• Audi A3 (2013 >)
• Audi Q3 (2012 >)
• Audi A4 (2008 >)
• Audi A5 (2008 >)
• Audi Q5 (2009 >)
• Audi Cabriolet (2003 >)
• Audi A6 (2011 >)
• Audi A7 (2011 >)
• Audi Q7 (2007 >)
• Audi A8 (2010 >)
• Audi TT (2007 >)
• ... ...

Supported Volkswagen Models

• 6X/6E – Lupo (1999 >)
• 12 – up! (2012 >)
• 9N1/9N3 – Polo (2002 >)
• 6R – Polo (2010 >)
• 60/61 – Polo (2010 >)
• 1J – Bora (1999 >)
• 1J – Golf (1998 >)
• 1J – Golf (1998 >) – USA/Canada only
• 1K – Golf (2004 >)

Supported Volkswagen Commercial Vehicles (Nutzfahrzeuge)

• 2K – Caddy (2004 >)
• 7H/7J – Transporter (2004 >)
• 2C – Caddy (2011 >)
• 7E/7F – Transporter (2010 >)
• 2H – Amarok (2010 >)

Supported SEAT Models

• AA – Mii (2012 >)
• 7N – Alhambra (2011 >)
• 7M – Alhambra (2001 >)
• 3R – Exeo (2009 >)
• 5P – Altea (2009 > PA)
• 5P – Altea (2004 >)
• 5P – Altea XL/Freetrack (2009 > PA)
• 5P – Altea XL/Freetrack (2007 >)

Supported Škoda Models

• Fabia (1999 >)
• Fabia (2007 >)
• Octavia (1997 >)
• Octavia (2004 >)
• Octavia (2013 >)
• Roomster (2006 >)
• Rapid NA (India) (2012 >)
• Superb (2001 >)
• Superb (2008 >)
• Yeti (2010 >)
• Rapid NH (EU) (2013 >)
• Citigo (2012 >)
• ... ...

Supported Bentley Models

• Continental GT (2004 >)
• Continental GT (2012 >)
• Continental GT Diamond Series (2007)
• Continental GT Speed (2008 >)
• Continental Supersports (2010 >)
• Continental Flying Spur (2005 >)
• ... ...

Supported Lamborghini Models

• Gallardo MY09–10–11–12
• Aventador LP700-4
• ... ... (For full vehicle list details, please refer to the PDF linked at the top.)

VAS 5054A Supported Protocols

• K line (ISO 9141-2)
• High-speed CAN (ISO 11898-2)
• Low-speed CAN (ISO 11898-3)
• J1850 (SAE J1850)
• UDS Protocol
• PWM Protocol

Customer Feedback

Talayki

Good adapter. All chips are in place, and soldering quality is excellent. Connects without issues via both USB and Bluetooth. Works with ODIS S 3.0.3 and ODIS E 6.6.1 (downloaded from torrent). Reads error codes and parameter blocks reliably. Successfully flashed a Škoda Octavia A5 FL (2012) as expected. Very satisfied with the purchase. Shipment arrived in Moscow in 20 days, with tracking updates throughout China and Russia. Highly recommend this seller. Build quality is solid, includes all required chips, and functions flawlessly over USB and Bluetooth. Capable of reading block info, group parameters, clearing errors, and flashing ECUs effectively.

Sumtaki

Works perfectly on Volkswagen Golf 6, Golf 4, Bentley, and Audi Q7 – OK SUPER!

getaibose

I purchased a VAS5054A clone advertised as a 'full chip' version with UDS support and an OKI chip. I’ve used it successfully with VAS-PC, ODIS, and ODIS Engineering for scanning and clearing fault codes. It correctly scans UDS protocol vehicles (tested on a 2011 Škoda Fabia TDI). Functions well over both Bluetooth and USB. Even successfully flashed my car radio without any issues!

VAS 5054A Frequently Asked Questions (FAQ)

Q: During VAS5054A installation, I receive an error: “FDICopy() failed: code 4 [Corrupt cabinet]”. What does this mean?

A: This indicates the VAS5054A software is incompatible with your system. It requires Windows XP (SP2 or SP3).

Q: My computer runs Windows XP in French. Is the VAS5054A compatible?

A: Yes, it is compatible, but the C: drive must be formatted as NTFS.

Q: Which tool is best for resetting the airbag on a VW Golf Plus 1.6 FSI 85 kW (2005)?

A: The VAS5054A is the best and most reliable option.

Q: Can the VAS5054A reset the ABS and SRS (Airbag) warning lights for VW, Audi, Škoda, and SEAT vehicles?

A: Yes, it can.

Q: Does the Spanish V19 version of VAS5054A include a SEAT CD?

A: No, the SEAT CD does not include Spanish language support. The Spanish package contains: Basic CD, VW CD, and AUDI CD.

Q: Does the French CD version of VAS5054A V19 (Item No: SP33-B) include Skoda and SEAT CDs? Can it diagnose Skoda and SEAT vehicles?

A: It does not include French-language Skoda or SEAT CDs, and lacks guided diagnostic functions. However, it can still diagnose Skoda and SEAT vehicles. Note: During installation, you do not select specific car brands—the VAS5054A software interface remains consistent regardless of vehicle brand. The data CDs (VW, Audi, Skoda, SEAT) serve only as guidance aids. Even with just the Basic CD installed, the VAS5054A remains fully functional for diagnostics. (Guided function refers to step-by-step diagnostic instructions.) Additionally, when installing the software, ensure the selected language matches in both installation locations.

VAS 5054A Package Contents

• 1 pc × VAS 5054A Main Unit
• 1 pc × USB Cable
• 4 pcs × CD Software
• 1 pc × Carry Case
